Two Holland Pump wellpoint pumps on rental as part of a wellpoint package on a job site in Florida
Holland Pump

Wellpoint Dewatering Equipment Rental & Sales

Get a quote

Holland Pump rents and sells complete wellpoint dewatering equipment for contractors working in sandy soils and high water tables. From wellpoint pumps and self-jetting wellpoints to header pipe, swing joints, and fittings, we supply everything you need to lower groundwater and keep your excavation dry.

Whether you need a wellpoint system rental for a single trench or a full package to buy for your own fleet, our team will help you size the system, deliver it to site, and support it until the job is done. With 16 branches across Florida and the US, wellpoint equipment is available locally, with service crews on call 24/7.

Call (561) 697-3333 or request a quote to talk to a dewatering specialist.

How a Wellpoint Dewatering System Works

A wellpoint dewatering system lowers the groundwater table around an excavation by drawing water out through a line of small, closely spaced wells. It works best in sands and gravels, where water flows freely to the wellpoints.

A single stage of wellpoints can typically lower the water table by around 15 to 20 feet. For deeper excavations, two or more stages or a deep well system may be required. With decades of experience, our engineers can design the right layout for your soil and depth.

1

Installation

Self-jetting or PVC wellpoints are jetted or punched into the ground around the work area, typically 3 to 6 feet apart depending on soil conditions.

2

Riser Pipes

Each wellpoint is attached to a riser pipe that brings water up to ground level.

3

Swing Joints

Flexible swing joints connect each riser to a horizontal header pipe running along the trench or excavation.

4

Vacuum Action

The wellpoint pump creates a strong vacuum, pulling air and water through the header and drawing groundwater into every wellpoint simultaneously.

5

Discharge

Pumped water is sent to an approved discharge point, often through a treatment unit such as a settling tank.

Prepackaged Wellpoint Systems

Don't want to source every part separately? Our prepackaged wellpoint systems include the pump, wellpoints, header pipe, swing joints, and fittings, sized to work together. Each package can be rented for the length of your project or purchased outright.

Not sure which size you need? Send us your excavation depth, length, and soil report, and we'll recommend a system and quote it.

ComponentWS100-GRWS200-GRWS400-GRWS600-GR
Description6 Inch Header Utility System6 Inch Header Small System6 Inch Header8 Inch Header
Header pipe, Sch. 40, 7 grommets per 20-foot section, approx. 3-foot grommet spacing100 ft200 ft400 ft600 ft
1-1/2 inch x 20 foot PVC wellpoints (0.015 inch) with inner drawdown tube3050100150
Grommet swing joint assembly with clear sealing elbows3050100150
PVC tee, sleevable1122
PVC 90 elbow, sleevable3666
PVC 45 elbow, sleevable2444
PVC 22.5 elbow, sleevable0222
PVC end cap, sleevable2222
Heavy-duty rubber header sleeves14284050
Stainless steel quick disconnect clamps3060100125
Butterfly valve, sleevable0011
Grommet header plugs173570105
PricingGet a quoteGet a quoteGet a quoteGet a quote

Wellpoint Pumps

The pump is the heart of every wellpoint system. Our wellpoint pump fleet covers three pump types, each available to rent or buy at every Holland Pump branch:

  • Rotary lobe wellpoint pumps (WP6, WP8, WP10, WP12): compact, fuel-efficient pumps that can run dry and handle solids, with flows from 600 to 2,656 GPM.
  • Vacuum assist wellpoint pumps (WP6 VAWP, WP10 VAWP): centrifugal pumps paired with an independent rotary vane vacuum system for strong air handling and flows up to 4,400 GPM.
  • Double diaphragm pumps (WP4 DD, WP6 DD): rugged, primeless pumps for slurries, viscous fluids, and intermittent flows.

Electric, skid- and trailer-mounted options are available, along with partial and full sound enclosures for urban and night work.

Compare our wellpoint pumps and full specifications

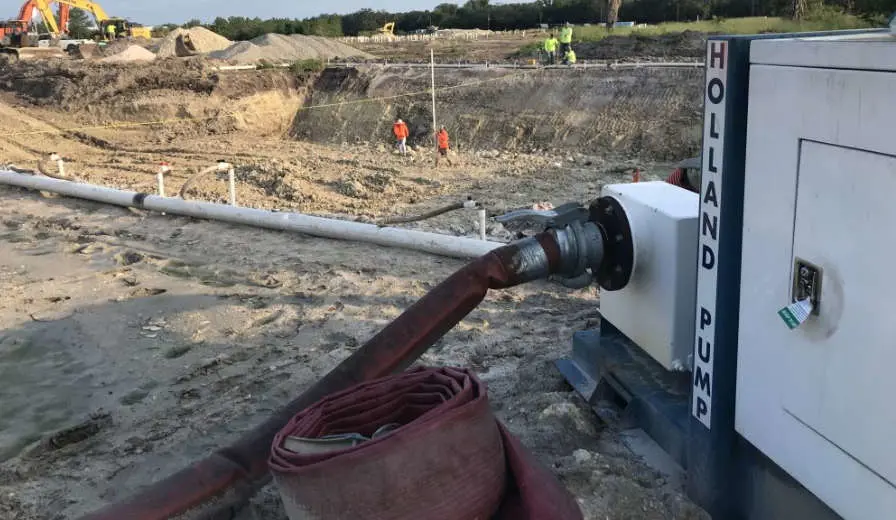

A rented Holland Pump wellpoint pump in operation on a construction site in the US

Wellpoint Components & Parts

Every component of a wellpoint system is available to rent or buy, individually or as part of a package. All parts are compatible with standard 1-1/2" riser pipe and 6", 8", and 10" header systems.

Get a quote
  • Self-jetting wellpoint with PVC slotted screen and saw-toothed tip

    Self-Jetting Wellpoint with PVC Screen

    Fabricated around a 1.5” galvanized inner pipe, the wellpoint features a PVC plastic 0.015” slotted filter screen, a jet head with a plastic ball valve for jetting and a saw-toothed tip to penetrate hardpan layers or other tough ground strata. The top coupling threads to standard 1.5” riser pipe.

  • Self-jetting wellpoint with stainless steel mesh filter screen

    Self-Jetting Wellpoint with Stainless Steel Screen

    All the great features of our well-known PVC screen steel self-jetting wellpoint, but upgraded with a 0.015” Stainless Steel mesh filter screen. The top coupling threads to standard 1.5” riser pipe.

  • 1-1/2 inch Schedule 40 PVC wellpoint

    PVC Wellpoints (1-1/2" Sch. 40)

    –1-1/2” sch. 40 x 36” long

    These economical wellpoints are used when a jet rod or punch and casing are used. An inside slip coupling is used so the wellpoint riser can be pulled and re-used.

  • 1-1/2 inch wellpoint swing joint with shut-off valve

    Wellpoint Swing Joint (1-1/2")

    Tapered ends fit into the rubber grommets, expanding the grommets for an airtight fit in the header and wellpoint. No wrenches or tools are needed. Shut-off valve included to control water and air movement in the wellpoint.

  • Header pipe support bracket mounted on riser pipes

    Wellpoint Header Pipe (Grommet Style, 6", 8" & 10")

    6", 8", & 10" Diameter Sizes

    Made of rugged PVC plastic – one man can handle and carry a 20’ (6 m) length. You save time and manpower on transportation, installation, and removal. Header pipe is available in 6" (150 mm), 8" (200 mm), and 10" (250 mm) sizes. Standard header pipe has 7 outlets per 20’ section. Close header for those extremely saturated jobs is available with 14 outlets per 20’ section. A selection of elbows, tees, angle fittings, and end caps are available for all header sizes.

  • Dresser coupling for connecting PVC or steel discharge pipe

    Dresser Couplings

    6″, 8″, & 10″ Diameter Sizes

    Used to connect PVC or hard pipe on pressure (discharge) side of pump.

  • Rubber slip-fit header pipe coupling

    Header Coupling

    6", 8", 10" Diameter PVC Pipe

    Leakproof header connections are assured with the rubber slip-fit sleeve coupling. Molded sleeves with a tapered ID fit quickly onto the header pipe.

  • PVC header fittings including tee and elbows

    VC Header Fittings

    Schedule 40 – 6″, 8″, 10″ Diameter

    Lightweight fittings are an alternative to steel on many sites. The sleevable design is the same OD as PVC pipe for quick and convenient hookup of the header pipe using our rubber header coupling. Available in 6″, 8″, 10″ schedule 40 – tee, 90°, 45°, 22.5° or end cap.

  • Rubber welltop and header grommet inserts

    Grommet Inserts

    Welltop grommet (left) and header grommet (right)

    Grommet inserts are used to secure and seal swing joints to the welltop and header piping. Welltop insert is straight-walled to fit inside a 1-1/2” sch. 40 PVC coupling. Header inserts have a curved groove to fit inside a 2” hole in the PVC header. Fits 6” and 8” header systems.

  • Rubber grommet plugs for unused header pipe outlets

    Grommet Plugs

    A simple, effective way to plug unused header pipe openings. Requires no tools.

  • Stainless steel quick disconnect clamps for header couplings

    Quick Disconnect (QD) Clamps

    6″, 8″, & 10″ Diameter Sizes

    Header coupling connections are secured quickly and easily with Quick Disconnect “QD” style clamps. Simply pull the band around the coupling and push the worm screw in place. Minimal twisting of the screw with standard 5/16” nut driver is needed to finish tightening the unit. To loosen the connection, just remove tension and pop the screw from the band threads.

  • Wellpoint pipe puller for lifting wellpoints out of the ground

    Wellpoint Pipe Puller

    This fitting, attached to a crane or other lifting mechanism, makes removal of the installed wellpoint a quick, safe, and simple job. The bracket slips under the welltop, secured by the locking gate, and the wellpoint/riser pipe is then lifted straight out of the ground. The puller releases with a one-hand operation and is ready for use on the next wellpoint.

Get a quote
  • Wellpoint jet fitting for connecting a jetting hose

    Wellpoint Jet Fitting

    –1.5” Grommet Style Connection Size

    Connected to the high pressure jetting hose, the jet fitting makes set-up for ‘jetting in’ the wellpoints a simple operation. The O-ring equipped jet fitting pushes into the Complete Welltop Adapter/riser assembly and a spring-secured bracket slips under the welltop to provide a leak-free pressure connection. Once the wellpoint is jetted in, the bracket is swung clear and the jet fitting pulled from the welltop, for use on the next wellpoint. No tools are required.

  • Wellpoint mop with hose for removing surface water

    Wellpoint Mop

    Mops are used for removing stubborn surface water from a dewatering site. The 20 ft. hose connects directly to the header system and transmits the pump vacuum to the mop head. The mop head can be moved to the lowest point to remove surface water down to within one inch of the mop base. Includes a ball valve to fine tune system depending on the water level. Heavy-duty steel to withstand most construction site abuse.

  • Steel wellpoint strainer for sump pit dewatering

    Wellpoint Strainer

    Strainers can be used at the lowest point in an excavation to create a sump pit and remove unwanted water. Dig a hole approx. the size of a 5-gal bucket, place the strainer in a rock bed below the surface, hook the 20 ft. hose to the header pipe, and adjust the ball valve as needed. Strainers are made of durable steel to withstand most construction site abuse.

  • Aluminum welltop for steel self-jetting wellpoints

    Aluminum Welltop

    Grommet Style or O-ring Style

    Used with the steel self-jetting wellpoints, the aluminum welltop threads onto your 1 ½” steel riser pipe and serves as the welltop connection point for your swing joint assembly. Part 302 has a 2” nominal opening that fits swing joints with o-ring style elbows. Part 302-GR has a 1 ½” nominal opening that accepts a rubber header grommet (sold separately) for swing joints used in a rubber grommet-type wellpoint system. The wide hex at the bottom of the welltop allows for the use of our wellpoint removal tool or nylon choker to grip the wellpoint more securely when removing the wellpoint from the ground.

  • Wellpoint clay sealant for fixing small leaks

    Wellpoint Clay

    Seals small leaks in the wellpoint system, header pipe, swings, pumps, etc. Doesn’t dry up like plumbers' putty; not messy like pipe compound.

  • Two-piece aluminum jet rod with steel turbo tip

    Jet Rod

    The Jet Rod makes jetting in a point simple. The rod and fittings are aluminum to cut down on weight and make handling easier. Jet Rod is in 2 pieces to allow breakdown for easy transport and storage. The steel turbo tip blasts material out of the way for fast jetting and less wear.

  • Header pipe support bracket mounted on riser pipes

    Header Pipe Support

    Designed simply to make the header line self-supporting by utilizing the strength of the riser pipes, a safety precaution in sheer cut area and valleys.

  • Steel sand casing and punch for installing wellpoints

    Sand Casing & Punch

    Sand Casing

    Diameters: 6”, 8”, 10”, 12”
    Lengths: 15’, 18’, 20’, 23’

    With attached water/air lines (standard)
    Cable attachment (standard) or Excavator attachment (optional)

    Punch

    Diameters: 4” or 5”
    Lengths: 15’, 18’, 20’, 23’

    Cable attachment (standard) or Excavator attachment (optional)

  • Remote fuel pick-up for wellpoint pump fuel tanks

    Remote Fuel Pick-up

    –Single Pump Connection
    –Duplex Pump Connection

    Fuel pickups are used when a remote tank is provided for fuel consumption. Pickups are top-mounted and include both a supply and return line. Available for one or two pump operation.

Wellpoint Dewatering Applications

Wellpoint systems are the go-to method for shallow construction dewatering in sandy, permeable soils. They are common across Florida and the Gulf Coast, where high water tables are part of almost every dig.

Learn more about our Construction Dewatering Solutions Learn more about our Sewer Bypass Solutions

Trench dewatering

For sewer, water, and storm lines, the header runs along the trench and moves forward as the pipe is laid.

Pipeline and utility installation

Keeping long, linear excavations dry and stable.

Excavation dewatering

For foundations, basements, and pits on commercial and residential developments.

Lift station and manhole construction

Using a ring of wellpoints around the structure.

Road, bridge and marine work

For use close to rivers, canals, and coastlines.

Get a Wellpoint Equipment Quote

Tell us about your project, and we'll recommend the right wellpoint pump, system size, and components for rent or purchase. Share your excavation depth, length, soil type, and timeline, and a dewatering specialist will get back to you.

For 24/7 support, please call our emergency line directly at (561) 697-3333.

Preferred method of contact *
By using this form you agree with the storage and handling of your data by this website *

Wellpoint Equipment FAQs

A wellpoint system is a dewatering method that uses a row of small, shallow wells connected to a header pipe and a vacuum pump. The pump draws groundwater out of the soil to keep an excavation dry and stable.

A single stage of wellpoints typically lowers the water table by around 15 to 20 feet. For deeper excavations, we install multiple stages or recommend a deep well system.

Wellpoints are usually spaced 3 to 6 feet apart. Finer soils need closer spacing, while coarse sands and gravels allow wider spacing. Our engineers set the spacing based on your soil report.

Wellpoints work best in sands and sandy gravels with a high water table, which is why they are so common in Florida and coastal areas. In clays and silts, other methods such as sump pumping may be more effective.

Yes. We rent complete wellpoint systems, including the pump, wellpoints, header pipe, swing joints, and fittings, sized for your job. We can also deliver to site and support installation.
